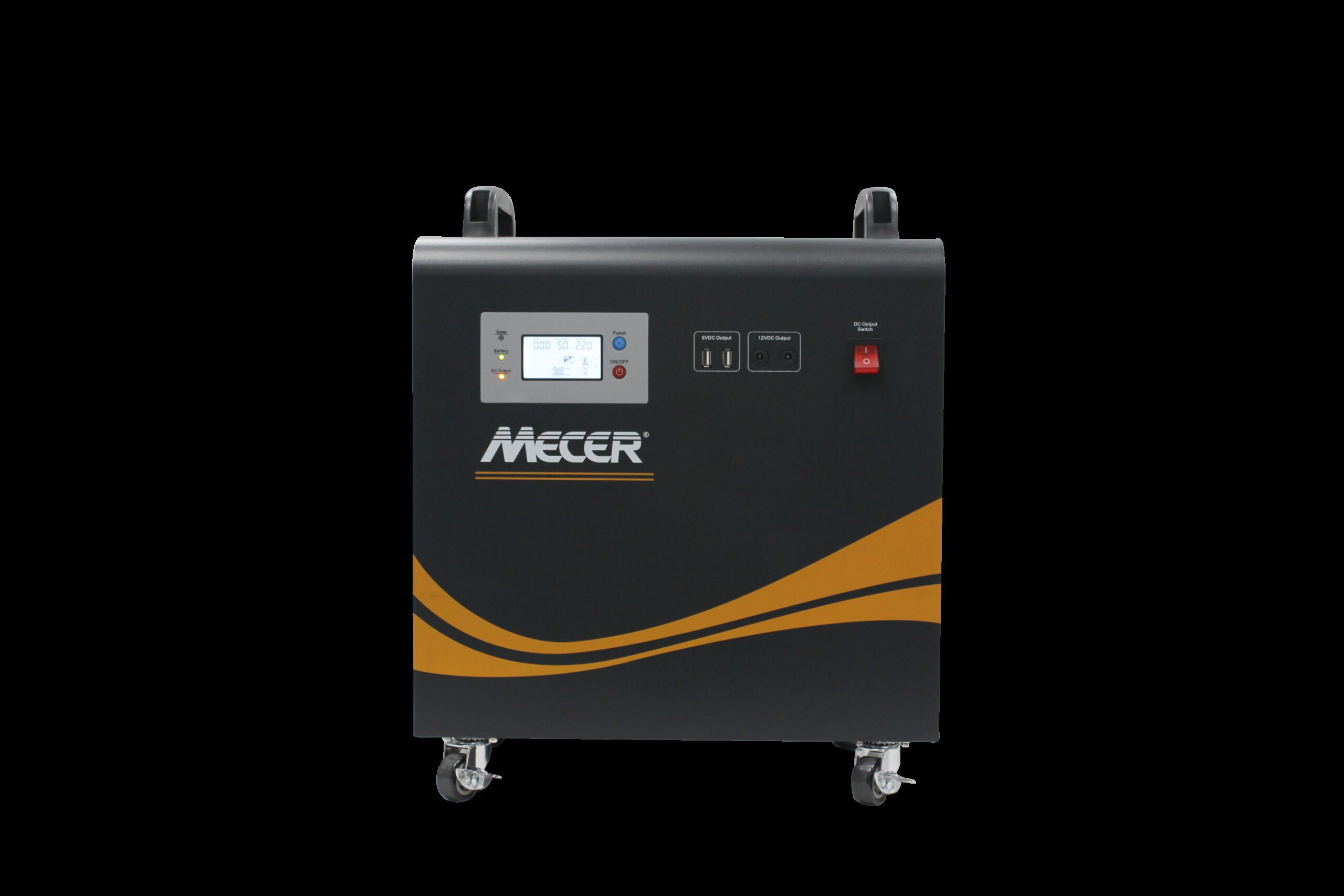

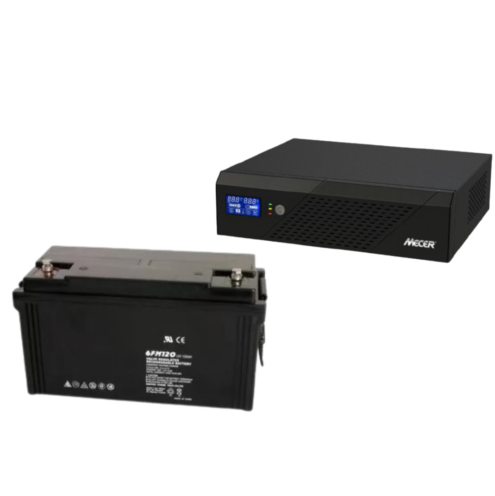

Mecer 1Kw 12V 1x100A Battery Pure Sine Wave (SOL-I-BB-M1)

Name: Mecer 1Kw 12V 1x100A Battery Pure Sine Wave (SOL-I-BB-M1)
SKU: sol-i-bb-m1
Price: 3439.00 ZAR
Availability: InStock

Mecer

Categories: Inverters, Power Bundles, UPS and Inverters Item#: sol-i-bb-m1

R3439,00

Stock level and ETA

In Stock at Supplier

3-4 Days To Order

Delivery charge calculated at checkout

Please note: displayed pricing is our discounted EFT price, applicable to Direct EFT and Ozow payments.

Pay your way

Flexible payment options

Choose your payment option at checkout.

Need help? WhatsApp us

Mecer 1Kw 12V 1x100A Battery Pure Sine Wave (SOL-I-BB-M1)

Features and Specifications

Solar array and battery connrnon-anode system input
Charge by mains supply for flexible configuration (optional function)
Overcharge protection and overdischarge protection for a longer battery life
LCD and LEDS for visualization of operation status of the equipment
Overall automatic protection and alarms including AC output over load protection, short circuit protection etc.

Inverter

Battery voltage 12v
In-built battery specification 100ah / 12v
Rated power 1000w
Output voltage 220vac
Output frequency 50/60hz
Output waveform Pure Sine Wave

Charge by a Mains Supply

Rated Voltage 220VAC
Charge Current 10A (MAX)

Additional information

Weight	40 g
Dimensions	51 × 51 × 35 cm

Specifications

Inverter

Battery voltage 12v
In-built battery specification 100ah / 12v
Rated power 1000w
Output voltage 220vac
Output frequency 50/60hz
Output waveform Pure Sine Wave

Charge by a Mains Supply

Rated Voltage 220VAC
Charge Current 10A (MAX)

Solar Input

Maximum photovoltaic voltage (VDC) 25V
Charge Voltage (VDC) 10-25V
Rated Charge Current (A) 30A
Maximum Power (WP) 360WP
Voltage of Overcharge Protection (VDC) 14.2V
Voltage of Overcharge Recovery (VDC) 14.0V
Voltage of Floating Charge (VDC) 13.7V

DC Output

Voltage of High-Voltage Protection (VDC) 16V
Voltage of High-Voltage Recovery (VDC) 15.2V
Voltage of Low-Voltage Recovery (VDC) 12.6V
Voltage of Low-Voltage Protection (VDC) 11V

– 5VDC USB Output Port 2 UNITS / MAX 2A 2
– 12VDC Output Port DC Ports (Max 2A)
– Starting Temperature of the exhaust fan Ø 45’C
– Ambient Temperature for Operation 0-40’C
– Ambient Temperature for Storage -25 – +55’C
– Operation/storage conditions 0-90%
