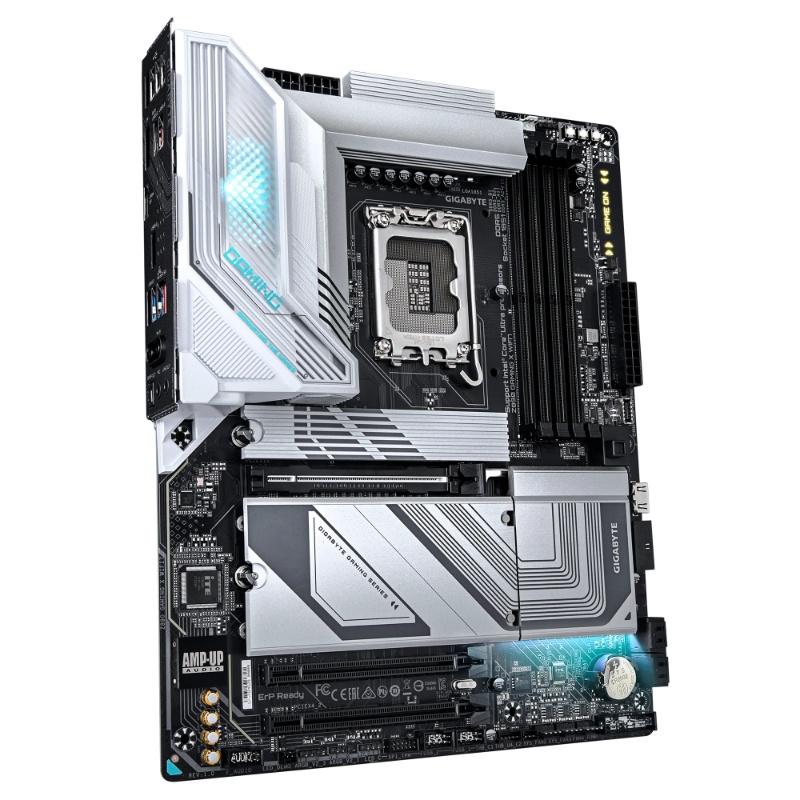

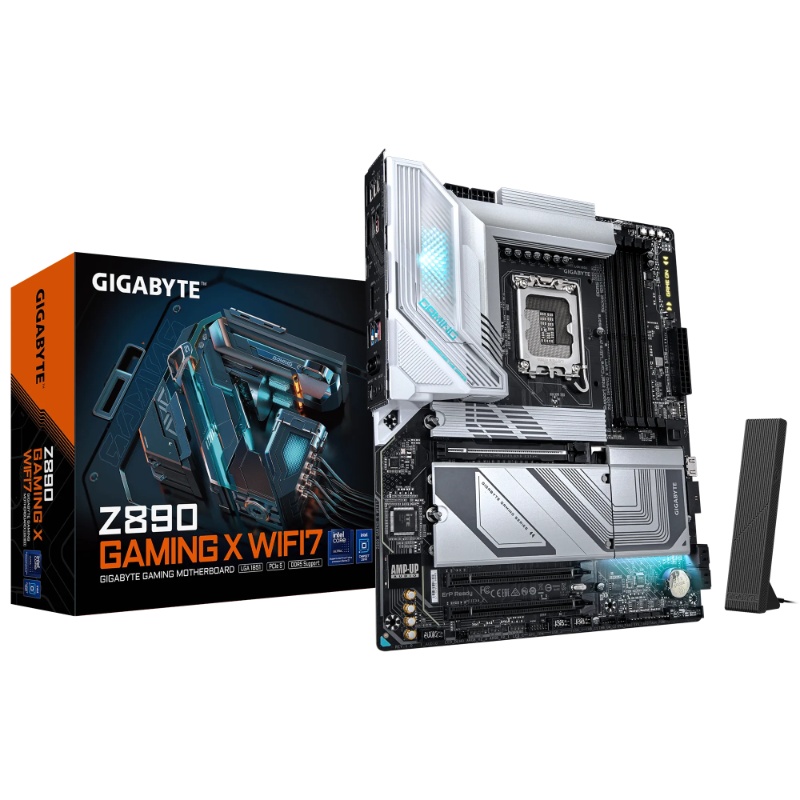

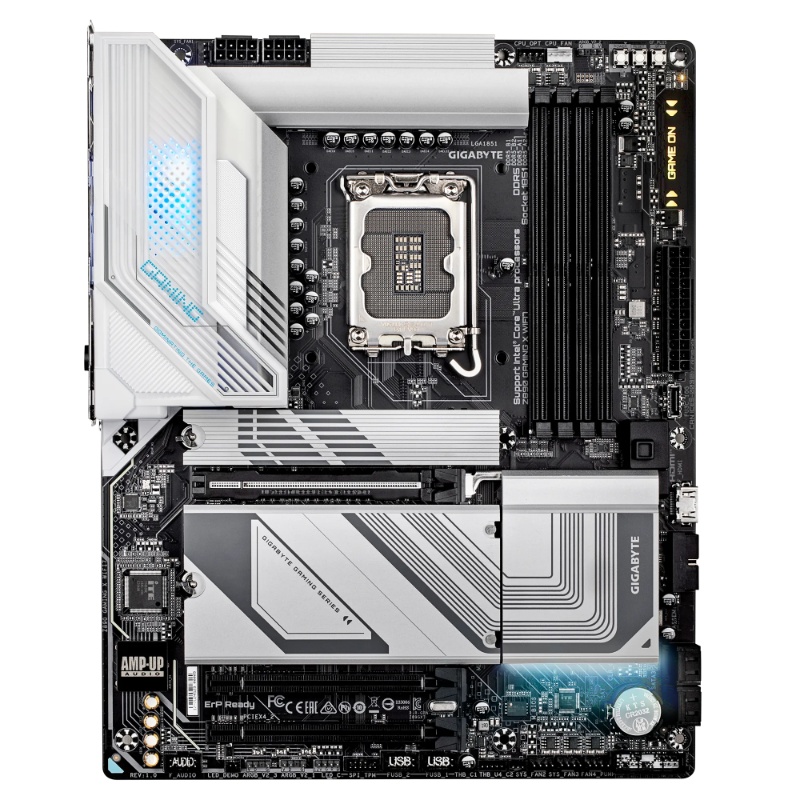

GIGABYTE Z890 GAMING X WIFI7 ATX Motherboard
The GIGABYTE Z890 GAMING X WIFI7 is an ATX desktop motherboard built around the Intel Z890 Express chipset and LGA1851 socket, with support for Intel Core Ultra processors.
Four DDR5 DIMM sockets support up to 256 GB of memory, with dual-channel operation, XMP and CUDIMM support. Memory rates range from 5600 to 6400 MT/s, with overclocked rates up to 9200 MT/s; supported speed and configuration depend on the processor and memory setup.
For storage and expansion, the board provides four M.2 connectors, four SATA 6 Gb/s connectors and one PCIe 5.0 x16 slot alongside two PCIe 4.0 x4 slots. Wi-Fi 7, Bluetooth 5.4 and Realtek 2.5GbE LAN provide wireless and wired networking options.
Specs & Features:
- Brand / series / model: GIGABYTE / GAMING / Z890 GAMING X WIFI7
- SKU / MPN: GA-Z890-GAMING-X-WIFI7
- Product type: Desktop motherboard
- Form factor: ATX
- Dimensions: 30.5 × 24.4 cm
- CPU socket: LGA1851
- Chipset: Intel Z890 Express
- Processor support: Supports Intel Core Ultra processors
- Memory sockets: 4 × DDR5 DIMM
- Maximum memory capacity: 256 GB total; 64 GB per DIMM
- Memory architecture: Dual-channel
- Supported memory data rates: 5600–6400 MT/s; overclocked rates up to 9200 MT/s
- Memory technologies: XMP and CUDIMM support
- ECC memory support: ECC unbuffered memory supported in non-ECC mode
- Memory configuration note: Supported speed and configuration depend on the CPU and memory configuration
- PCIe slots: 1 × PCIe 5.0 x16; 2 × PCIe 4.0 x4
- Primary PCIe slot function: Supports either a graphics card or an NVMe SSD
- M.2 connectors: 4 ×: 1 × PCIe 5.0 x4/x2; 2 × PCIe 4.0 x4/x2; 1 × SATA/PCIe 4.0 x4/x2
- SATA connectors: 4 × SATA 6 Gb/s
- RAID support: NVMe and SATA RAID 0/1/5/10
- Wired networking: Realtek 2.5GbE LAN
- Wireless networking: Wi-Fi 7; 2.4/5/6 GHz bands; 160 MHz 802.11be
- Bluetooth: Bluetooth 5.4
- Wireless networking notes: Wireless performance varies by environment and equipment; 6 GHz availability depends on local regulations

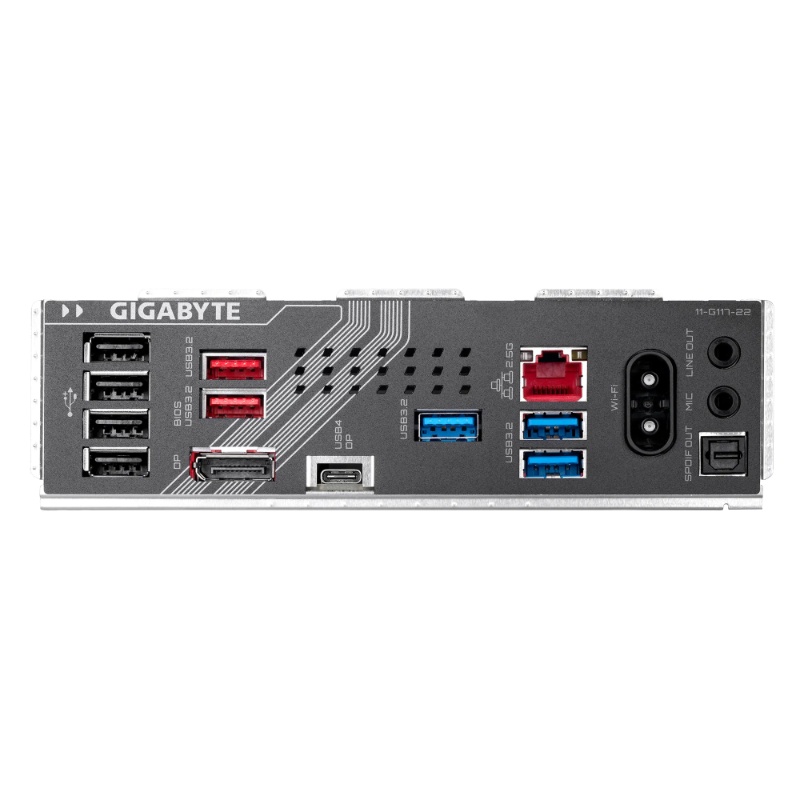

- Rear USB ports: 1 × USB4 Type-C (also supports DisplayPort video); 2 × USB 3.2 Gen 2 Type-A; 3 × USB 3.2 Gen 1; 4 × USB 2.0/1.1
- Internal USB headers: 1 × USB 3.2 Gen 2 Type-C connection; 2 × USB 3.2 Gen 1 ports; 4 × USB 2.0/1.1 ports
- Rear display outputs: USB4 Type-C with DisplayPort output; 1 × DisplayPort 2.1
- Rear display output resolution and refresh rate: Up to 3840 × 2160 at 144 Hz
- Front HDMI output: Internal/front HDMI 1.4; up to 1920 × 1080 at 30 Hz
- Simultaneous displays: Supports up to 3 displays; graphics support depends on the CPU
- Audio codec: Realtek audio codec
- Audio support: HD audio; 2/4/5.1/7.1-channel support
- Optical audio output: S/PDIF output
- Power connectors: 1 × 24-pin ATX power; 2 × 8-pin ATX 12V
- Fan and water-pump headers: 1 × CPU fan; 1 × CPU fan/water-pump; 3 × system fan; 1 × system fan/water-pump
- RGB headers: 3 × addressable RGB Gen2; 1 × RGB
- Front-panel headers: Front-panel and front-panel-audio headers
- Onboard controls and update feature: Q-Flash Plus, power and reset buttons
- BIOS: AMI UEFI BIOS
- Firmware and software support: Q-Flash, Q-Flash Plus and GIGABYTE Control Center support
- Operating system support: Windows 11 64-bit support; operating system not confirmed as included
An LGA1851 and Intel Z890 ATX motherboard with four M.2 connectors, Wi-Fi 7 and USB4 Type-C connectivity.
A suitable foundation for an Intel Core Ultra desktop build that needs DDR5 memory, multiple M.2 storage options and integrated Wi-Fi 7 networking.
