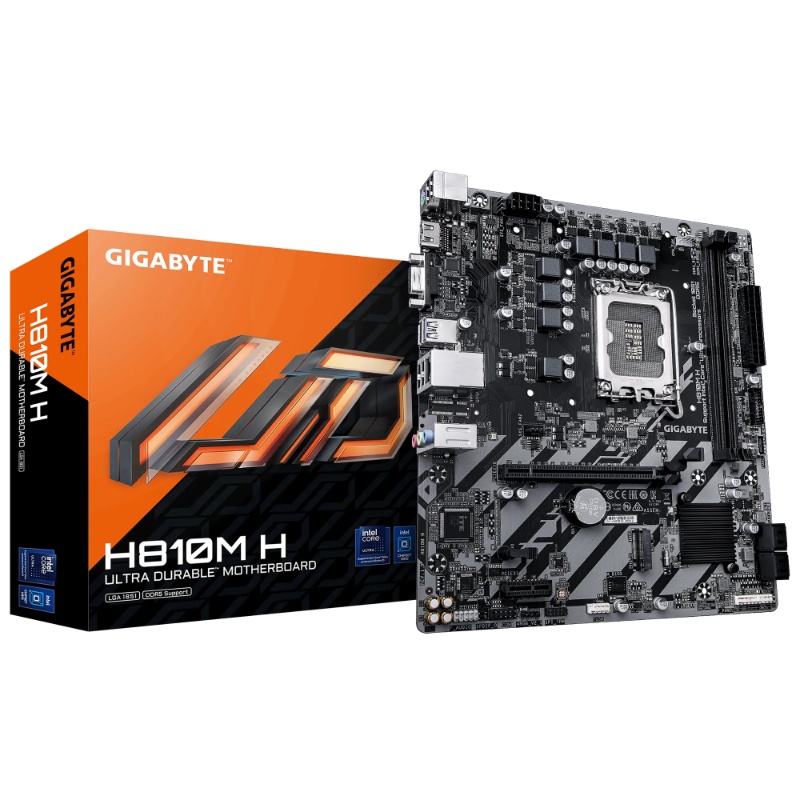

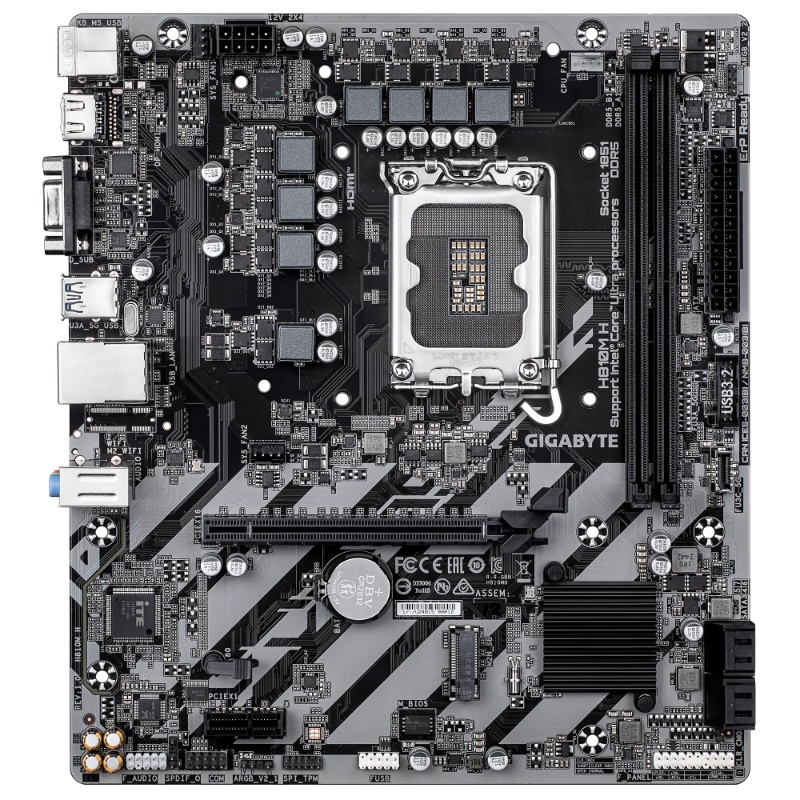

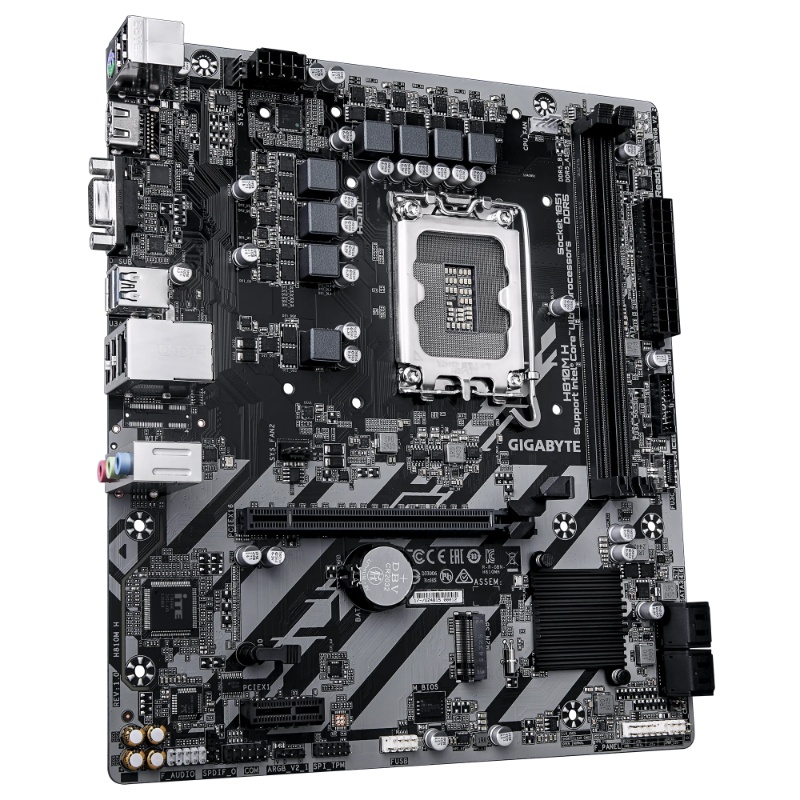

GIGABYTE H810M H Motherboard
The GIGABYTE H810M H is a Micro ATX motherboard built around the Intel H810 Express chipset and an LGA1851 socket, with support for Intel Core Ultra processors. Its two DDR5 DIMM sockets support up to 128 GB of memory, with listed module rates of 6400/5600 MT/s subject to processor and memory configuration.
Storage connections include an M.2 Socket 3 M-key connector for type 2280 PCIe 4.0 x4/x2 SSDs and four SATA 6 Gb/s connectors. Expansion is provided by a CPU-connected PCI Express 4.0 x16 slot and a chipset-connected PCI Express 3.0 x1 slot.
The board provides HDMI 2.1 and D-Sub/VGA display outputs, Gigabit Ethernet, Realtek high-definition audio and a mix of rear and internal USB connections. Graphics output support depends on the processor; check the intended CPU and system configuration when planning a build.
Specs & Features:
- Brand and model: GIGABYTE H810M H
- Chipset: Intel H810 Express
- CPU socket: LGA1851
- Processor support: Supports Intel Core Ultra processors; CPU-dependent specifications may vary.
- Memory slots: 2 DDR5 DIMM sockets
- Maximum memory capacity: 128 GB total; 64 GB per DIMM
- Memory architecture: Dual-channel
- Listed memory-module rates: 6400/5600 MT/s; subject to CPU and memory configuration
- Memory features: XMP support; specified ECC unbuffered modules operate in non-ECC mode
- Primary expansion slot: 1 CPU-connected PCI Express 4.0 x16 slot; supports a graphics card or NVMe SSD
- Additional expansion slot: 1 chipset-connected PCI Express 3.0 x1 slot
- M.2 storage: 1 M.2 Socket 3, M-key connector for type 2280 PCIe 4.0 x4/x2 SSDs
- SATA connectors: 4 SATA 6 Gb/s connectors
- HDMI output: 1 HDMI 2.1 port; up to 4096 × 2160 at 60 Hz; HDCP 2.3
- D-Sub/VGA output: 1 D-Sub/VGA port; up to 1920 × 1200 at 60 Hz
- Graphics output dependency: Graphics output support depends on the processor.
- Audio codec: Realtek high-definition audio codec
- Audio channels: 2/4/5.1/7.1-channel support
- S/PDIF: S/PDIF out support
- Ethernet: Realtek Gigabit Ethernet; 1 Gbps, 100 Mbps and 10 Mbps support
- Rear USB: 1 USB 3.2 Gen 1 port and 5 USB 2.0/1.1 ports
- Internal USB headers: USB Type-C with USB 3.2 Gen 1 support; 2 additional USB 3.2 Gen 1 ports; 2 USB 2.0/1.1 ports

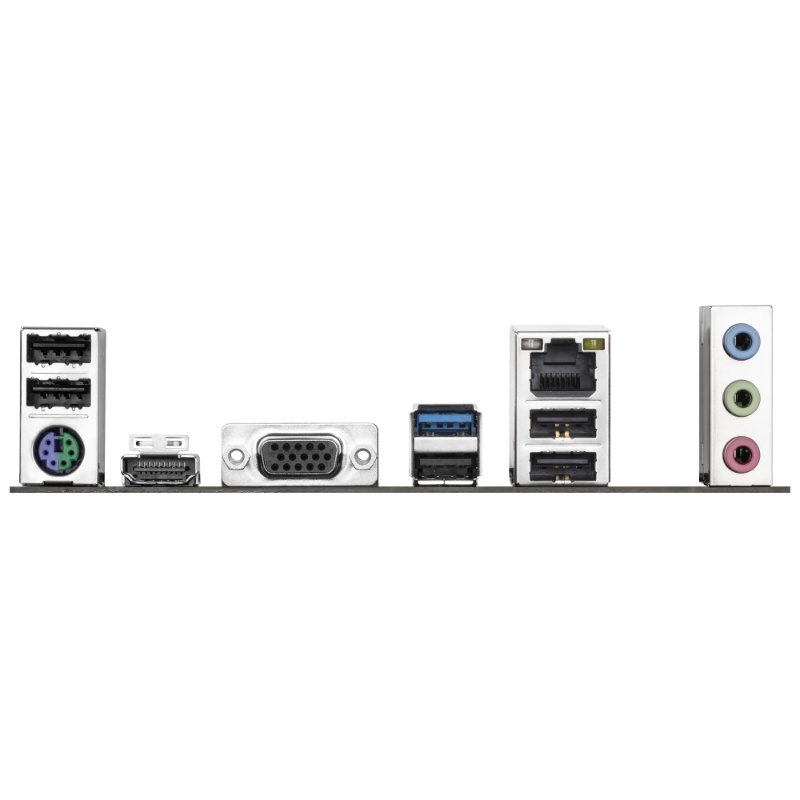

- Other rear I/O: 1 PS/2 keyboard/mouse port, 1 RJ-45 port and 3 audio jacks
- Power connectors: 24-pin ATX and 8-pin ATX 12V
- Fan headers: 1 CPU-fan header and 2 system-fan headers
- Addressable RGB: 2 addressable RGB Gen2 headers
- Additional internal connectors: Front-panel and front-panel-audio headers, TPM header, serial-port header and Clear CMOS jumper
- Hardware monitoring and fan control: Voltage, temperature and fan-speed detection; water-cooling flow-rate detection; fan-fail warning and fan-speed control
- Form factor: Micro ATX
- Dimensions: 24.4 × 21.5 cm
- BIOS: 256 Mbit flash; AMI UEFI BIOS
- Utilities: GIGABYTE Control Center, Q-Flash and Smart Backup support
A compact Intel H810 motherboard with DDR5 memory support, PCIe expansion, M.2 storage and HDMI and VGA outputs.
Suitable for a compact LGA1851 desktop build using Intel Core Ultra processors, DDR5 memory and Micro ATX-compatible system components.
