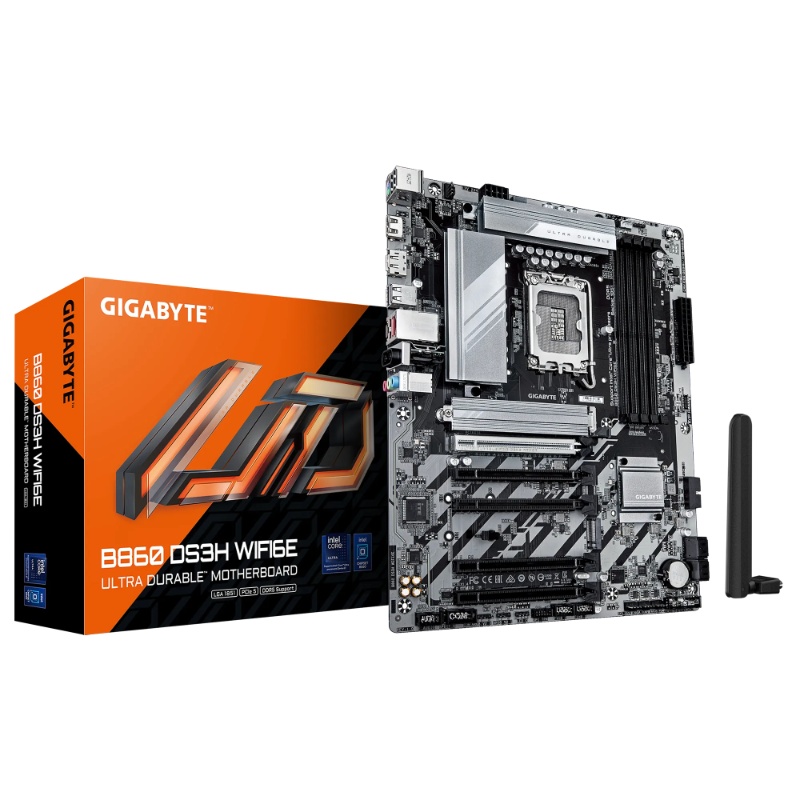

GIGABYTE B860 DS3H WIFI6E ATX Motherboard
The GIGABYTE B860 DS3H WIFI6E is an ATX motherboard for Intel Core Ultra processors using the LGA1851 socket. Its Intel B860 chipset, four DDR5 DIMM slots and two M.2 sockets provide a flexible foundation for a desktop PC build.
Expansion includes a CPU-connected PCIe 5.0 x16 slot, alongside four PCIe 4.0 x16-form-factor slots operating at x1. Storage options include two M.2 sockets and four SATA 6 Gb/s connectors, while Wi-Fi 6E and Realtek 2.5GbE LAN provide wireless and wired networking options.
Specs & Features:
- Brand and model: GIGABYTE B860 DS3H WIFI6E
- Chipset: Intel B860 Express
- Processor socket: LGA1851
- Processor support: Intel Core Ultra processors
- Form factor: ATX
- Dimensions: 30.5 × 24.4 cm
- Memory slots: 4 × DDR5 DIMM
- Maximum memory capacity: Up to 256 GB total; up to 64 GB per DIMM
- Memory architecture: Dual-channel
- Supported memory data rates: DDR5-5600 and 6400 through overclocked rates up to 9066 MT/s; supported speed depends on CPU and memory configuration
- Supported DIMM types: ECC unbuffered DIMMs (operate in non-ECC mode), non-ECC unbuffered DIMMs and XMP memory modules
- CPU-connected expansion slot: 1 × PCIe 5.0 x16
- Chipset-connected expansion slots: 4 × PCIe 4.0 x16-form-factor slots operating at x1
- M.2 sockets: 2: 1 × PCIe 5.0 x4/x2 and 1 × PCIe 4.0 x4/x2
- Supported M.2 lengths: 25110, 22110, 2580 and 2280
- SATA connectors: 4 × SATA 6 Gb/s
- SATA RAID support: RAID 0, 1, 5 and 10
- HDMI output: 1 × HDMI 2.1; up to 4096 × 2160 at 60 Hz; HDCP 2.3
- DisplayPort output: 1 × DisplayPort 2.1
- Wired networking: Realtek 2.5GbE LAN
- Wireless networking: Wi-Fi 6E
- Rear USB Type-C: 1 × USB 3.2 Gen 2×2
- Rear USB Type-A: 1 × USB 3.2 Gen 2 Type-A
- Rear USB 2.0/1.1 ports: 4
- Other rear connections: 1 × PS/2 keyboard/mouse port; 1 × RJ-45; 2 × antenna connectors; 3 × audio jacks
- USB headers: 1 × USB Type-C header supporting USB 3.2 Gen 1; 1 × USB 3.2 Gen 1 header; 2 × USB 2.0/1.1 headers
- USB ports via internal header: 2 × USB 3.2 Gen 1 ports
- Audio codec: Realtek audio codec
- Audio support: HD audio; 2-, 4-, 5.1- or 7.1-channel support; S/PDIF Out support
- Power connectors: 1 × 24-pin ATX main power; 1 × 8-pin ATX 12V
- Fan and pump headers: 1 × CPU fan; 1 × CPU fan/water-cooling-pump; 2 × system fan; 2 × system fan/water-cooling-pump
- RGB headers: 3 × addressable RGB Gen2; 1 × RGB LED
- Additional internal connections: Front-panel and front-panel-audio headers; S/PDIF Out header; TPM header for GC-TPM2.0 SPI V2; serial-port header
- Onboard controls: Q-Flash Plus button; reset and Clear CMOS jumpers
- Supported utilities: Q-Flash, Q-Flash Plus, Smart Backup and GIGABYTE Control Center
- Operating system support: Windows 10 64-bit and Windows 11 64-bit
A Wi-Fi 6E ATX platform with LGA1851 support, DDR5 memory and PCIe 5.0 storage and graphics expansion.
Suitable for desktop builds using Intel Core Ultra processors that need DDR5 memory, M.2 storage and a mix of modern expansion and connectivity.
