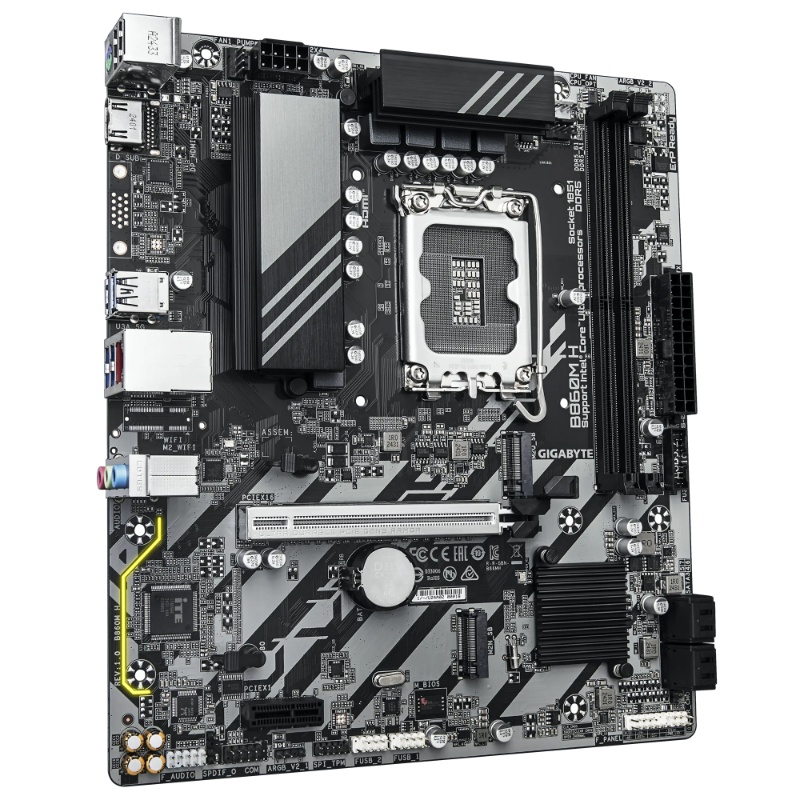

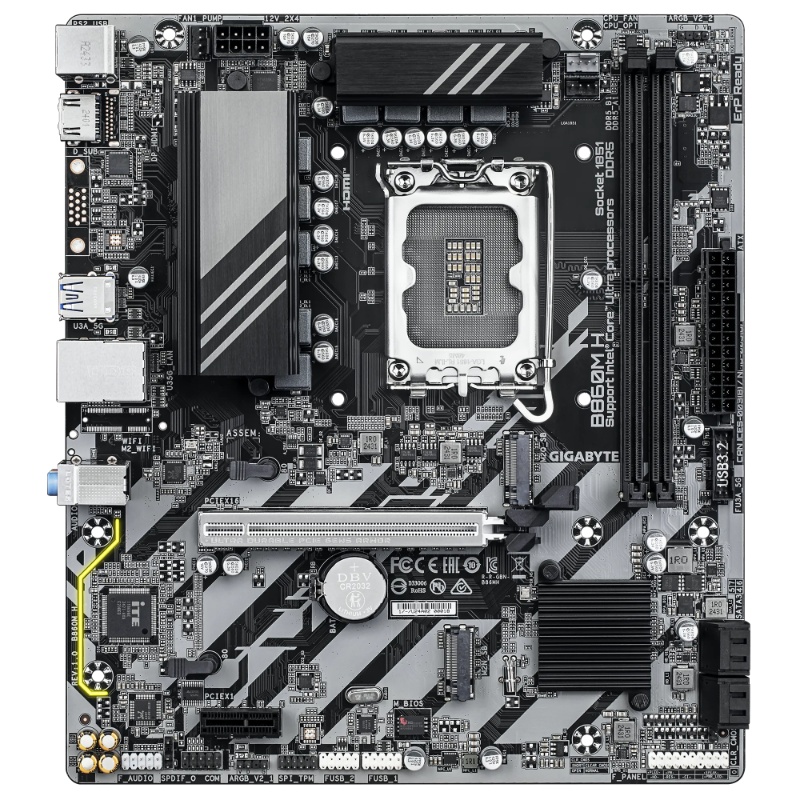

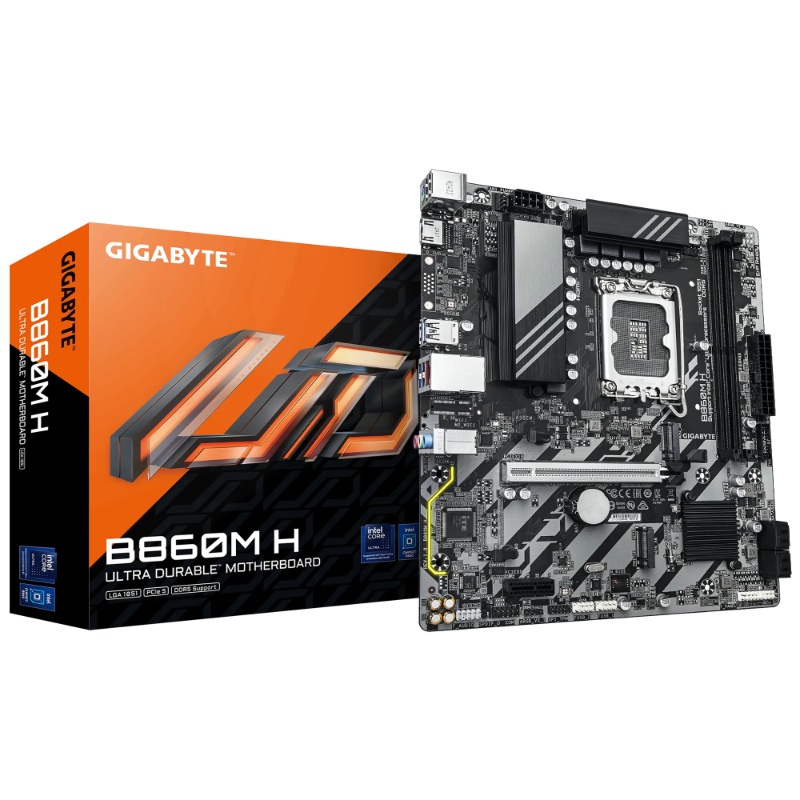

GIGABYTE B860M H Micro ATX Motherboard
The GIGABYTE B860M H is a Micro ATX motherboard for Intel Core Ultra Series 2 processors using the LGA1851 socket and Intel B860 Express chipset. Its compact 24.4 × 21.5 cm format suits space-conscious desktop builds.
Two DDR5 DIMM sockets support dual-channel memory and up to 128 GB. Expansion and storage include a PCIe 5.0 x16 slot, two PCIe 4.0 M.2 slots and four SATA 6 Gb/s connectors, alongside Realtek 2.5GbE wired networking.
PCIe EZ-Latch assists graphics-card removal, while EZ-Debug diagnostic LEDs provide a practical troubleshooting aid. Check GIGABYTE’s processor support information before choosing a CPU; memory rates depend on the processor and memory configuration. The HDMI output also relies on the installed processor’s graphics capability.
Specs & Features:
- Brand and model: GIGABYTE B860M H
- Series: Ultra Durable
- Form factor: Micro ATX
- Dimensions: 24.4 × 21.5 cm
- CPU socket: LGA1851
- Processor support: Intel Core Ultra Series 2
- Chipset: Intel B860 Express
- Memory sockets and architecture: 2 × DDR5 DIMM sockets; dual-channel
- Maximum memory capacity: 128 GB total; 64 GB per DIMM
- Memory rates: 5600 and 6400 MT/s; overclocked rates up to 8800 MT/s
- Memory features: XMP support; supported memory type and speed depend on CPU and memory configuration
- Main expansion slot: 1 × PCIe 5.0 x16
- Additional expansion slot: 1 × PCIe 4.0 x1
- M.2 storage slots: 2 × PCIe 4.0 M.2 slots
- SATA connectors: 4 × SATA 6 Gb/s
- Display output: 1 × HDMI; HDMI 2.1 and HDCP 2.3
- Maximum display resolution: 4096 × 2160 at 60 Hz, dependent on installed processor graphics
- Wired networking: Realtek 2.5GbE LAN; 2.5 Gbps, 1 Gbps and 100 Mbps
- Audio: Realtek High Definition Audio; 2/4/5.1/7.1-channel configurations and S/PDIF output support
- Rear USB 3.2 Gen 1: 4 ports
- Rear USB 2.0: 2 ports
- Front USB support: USB 3.2 Gen 1 support
- Internal USB connection note: Internal-header connections require compatible case wiring or accessories

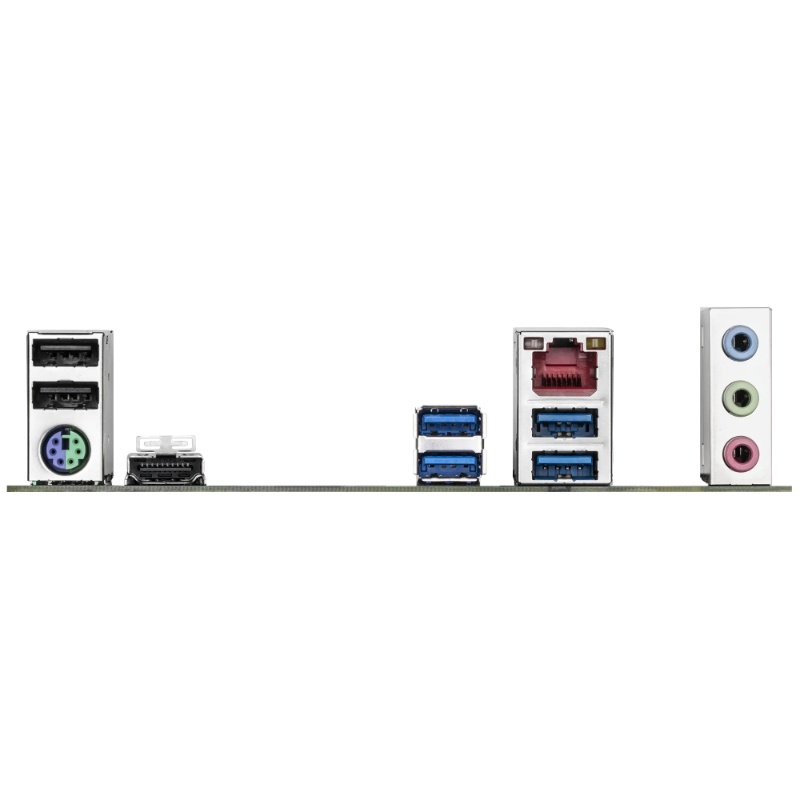

- Other rear connections: 1 × PS/2 keyboard/mouse port, 1 × RJ-45 port and 3 × audio jacks
- Power connectors: 1 × 24-pin ATX main power; 1 × 8-pin CPU power
- Fan and pump headers: CPU fan; CPU fan/water-cooling pump; system fan/water-cooling pump
- Addressable LED headers: 2 × addressable LED headers
- Lighting control: RGB Fusion support
- CPU socket and heatsinks: RL-ILM CPU socket; VRM and chipset heatsinks
- Graphics-card installation feature: PCIe EZ-Latch
- Diagnostics: EZ-Debug diagnostic LEDs
- Memory optimisation features: DDR5 XMP Booster and D5 Bionic Corsa
Two PCIe 4.0 M.2 slots and 2.5GbE networking equip this compact B860 motherboard for flexible desktop configurations.
Suitable for compact Intel Core Ultra Series 2 desktop builds for everyday computing, office use or gaming with a suitable graphics card.
