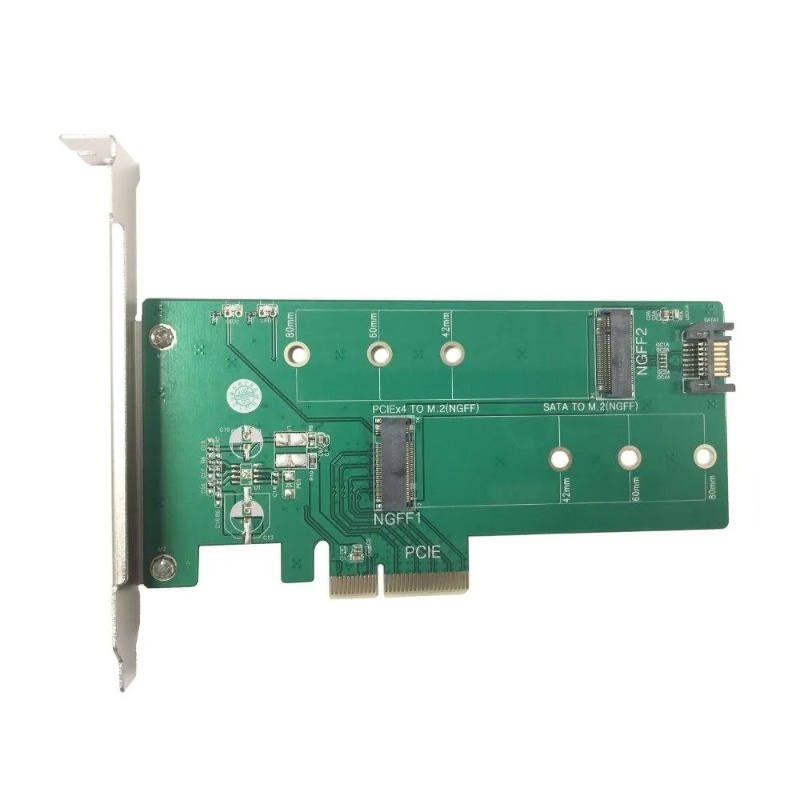

Vantec UGT-M2PC200 PCIe x4 Dual M.2 SSD Adapter
The Vantec UGT-M2PC200 is a PCIe x4 adapter with separate M.2 slots for a PCIe-based NVMe or AHCI drive and a SATA SSD. It supports 42 mm, 60 mm and 80 mm M.2 modules, making it suitable for adding either drive type to a desktop system with an available compatible PCIe slot.
The two slots use different interfaces and keying: the primary is M-Key for NVMe or AHCI, while the secondary is B-Key for SATA. The SATA slot also needs a connection to a SATA port on the motherboard; booting from a drive on the adapter requires a UEFI BIOS with boot support.
Key Features:
- Primary M.2 slot: PCIe-based NVMe or AHCI SSD; M-Key
- Secondary M.2 slot: SATA SSD; B-Key
- Supported M.2 module lengths: 42 mm, 60 mm and 80 mm (22 × 42 mm, 22 × 60 mm and 22 × 80 mm)
- Host interface: PCI Express v3.0 x4 (four lanes); compatible with PCI Express v2.0 and v1.0
- Supported motherboard slots: PCIe x4, x8 or x16
A dual-slot M.2 adapter with separate support for a PCIe-based NVMe or AHCI SSD and a SATA SSD.
Ideal for desktop users adding a compatible M.2 NVMe, AHCI or SATA SSD through an available PCIe slot.
Included:
- 1 × UGT-M2PC200 adapter
- 1 × mount-and-screws set
- 1 × low-profile bracket
- 1 × quick installation guide
