Vantec NexStar SX NST-230C3-BK

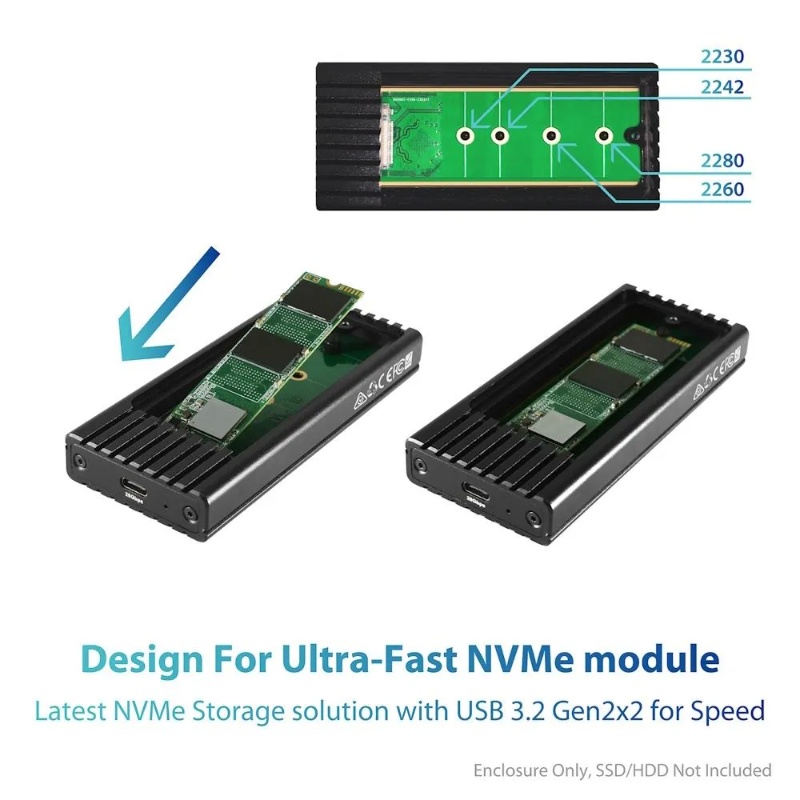

The Vantec NexStar SX NST-230C3-BK is a black external enclosure for one M.2 NVMe SSD. It supports M-Key PCIe 3.0 x4 modules in 2230, 2242, 2260 and 2280 lengths; an SSD is not included.

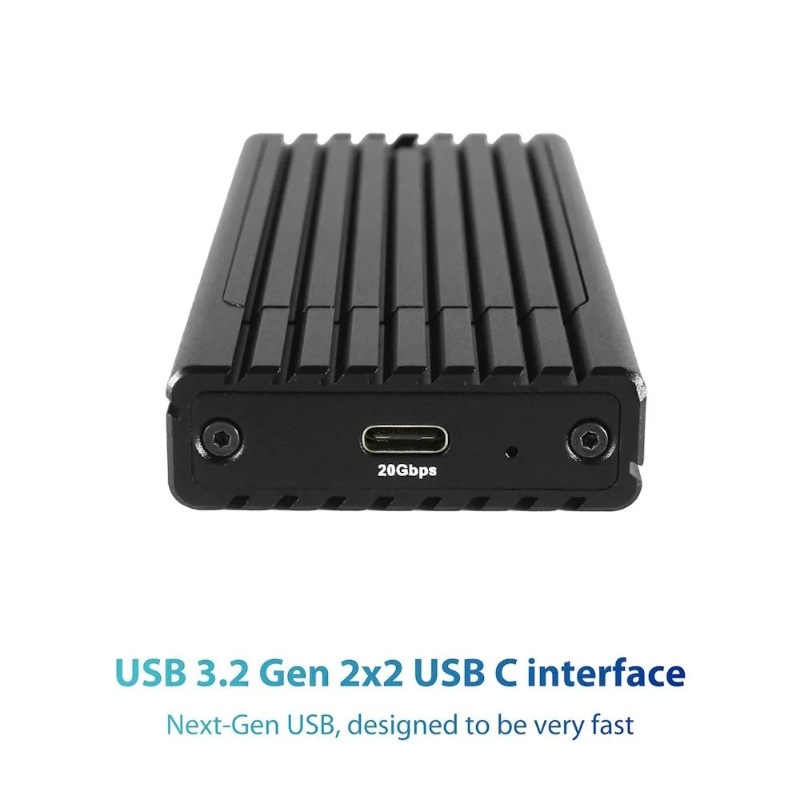

Connect it to a compatible USB Type-C host using its USB 3.2 Gen 2×2 interface, which has a theoretical 20G interface speed. The anodized aluminium body incorporates a heat-sink design, and bus power means no external power supply is needed.
Key Features:
- Internal interface: 1 × M.2 NVMe, M-Key
- Supported module lengths: 2230, 2242, 2260 and 2280
- Host interface: USB 3.2 Gen 2×2, USB Type-C
- Theoretical interface speed: 20G
- Enclosure material and cooling: Anodized aluminium with integrated heat-sink design
- Power: Bus-powered; no external power supply required
A bus-powered USB-C enclosure for M.2 NVMe SSDs, with support for four module lengths and an aluminium heat-sink design.
Suitable for adding a compatible M.2 NVMe SSD as external storage with a USB Type-C host.
Included:

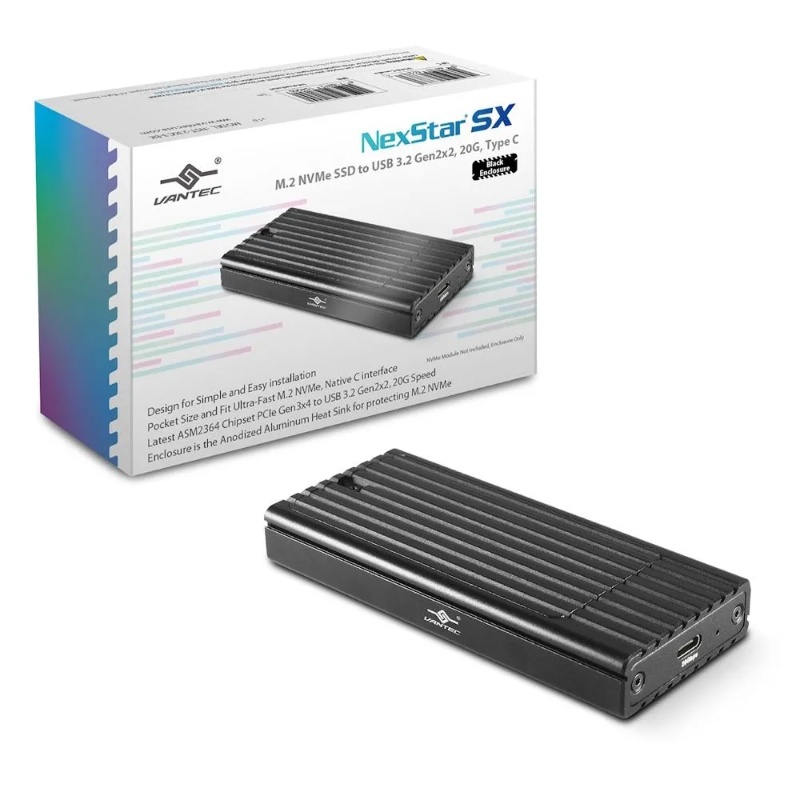

- 1 × Vantec NexStar SX M.2 NVMe SSD enclosure
- 1 × shielded 380 mm (14.9 in) USB Type-C-to-Type-C cable
- 1 × thermal pad
- 1 × quick guide
